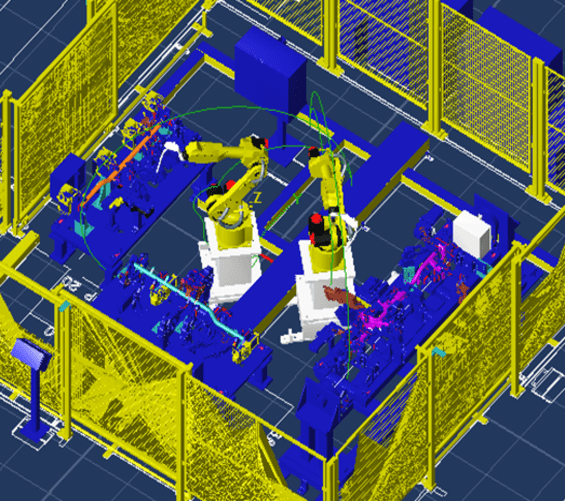

GeoTools Responsibility: Fixture Design, Robot cell simulation and design, Assembly, Robot Programming and Tryouts

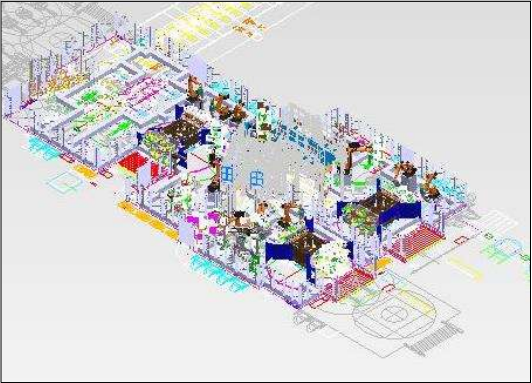

Geotools Responsibility: Simulation and OLP generation of Body Side LH and RH
Project: Tata Motors - X445 & X451
Pre Engineering: Feasibility Study of Body Side LH and RH for proving cycle time of 140 seconds.
-
Robotic Line design:
- Robotic Line design:
- Robot and Gun selections
- Robot reach study
- Tool validation
- Path Planning
- Cycle time validation
- Dual safety check (DCS )
- Offline programming (RCS&OLP)
| Total No of Robots: | 32 (KUKA) |
| RCS module: | KUKA KRC 8.3 r14 |
| Total no of Spots: | 968 |
| Sealing: | 6250mm |
Software: Process Simulate and Catia V5

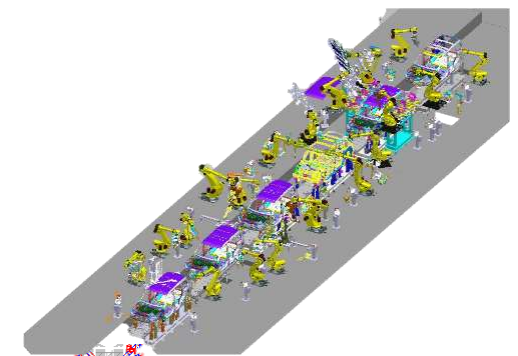

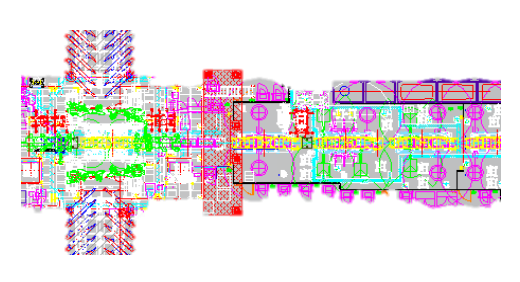

Geotools Responsibility: Simulation of Main Framing Line
Project: Mahindra & Mahindra – Z101, U301 & U302
Pre Engineering: Feasibility Study of Main Framing Line for proving cycle time of XXX seconds.
-
Robotic Line design:
- Layout Planning
- Robot and Gun selections
- Robot reach study
- Tool validation
- Path Planning
- Cycle time validation
- Dual safety check (DCS )
| Total No of Robots: | 20 (Fanuc) |
| Total no of Spots: | XXX |
| Sealing: | 0 mm |
Software: Process Simulate and Catia V5

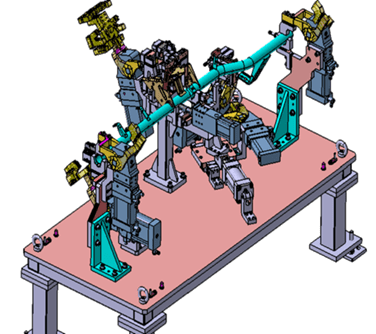

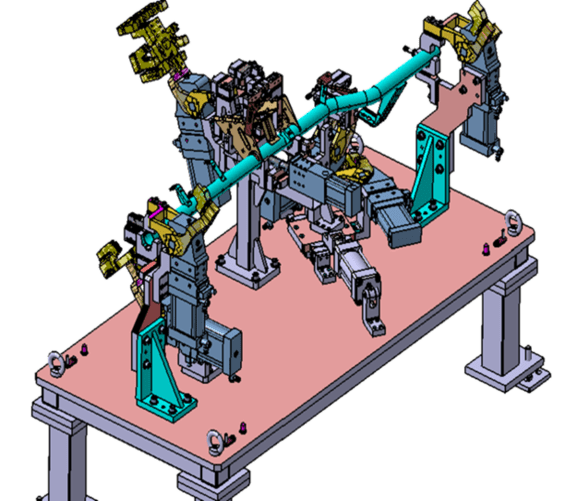

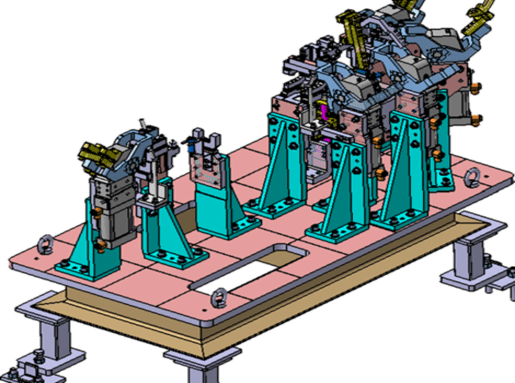

Geotools Responsibility: Design / Manufacturing / Prove-Out
Project: ACE CCB

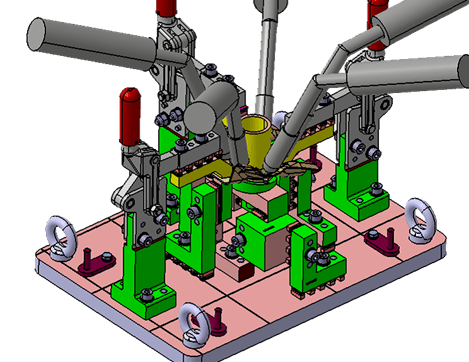

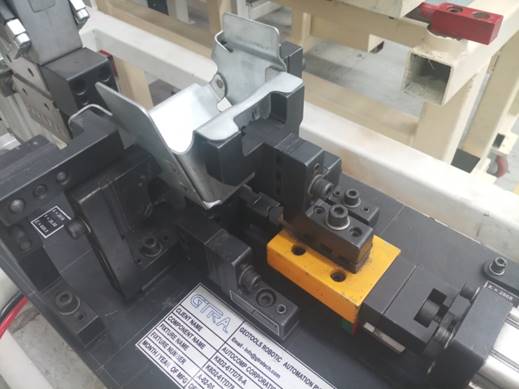

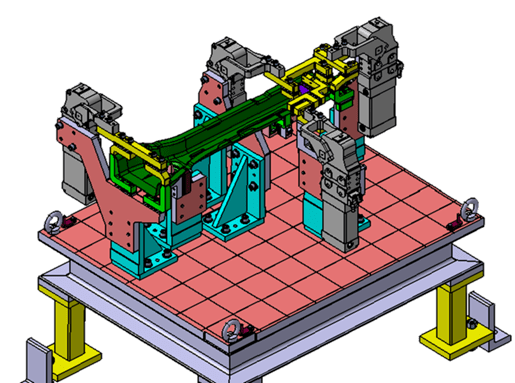

Geotools Responsibility: Design / Manufacturing / Prove-Out
Project: L551

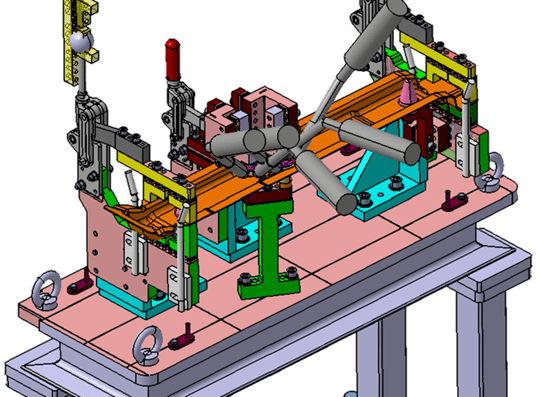

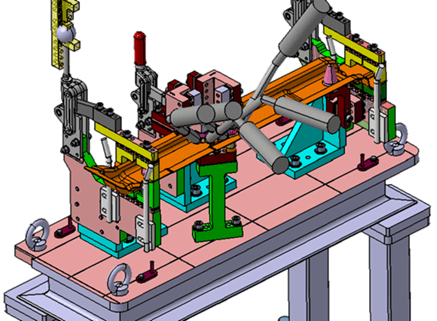

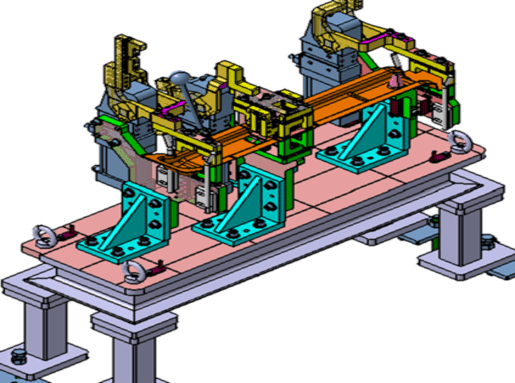

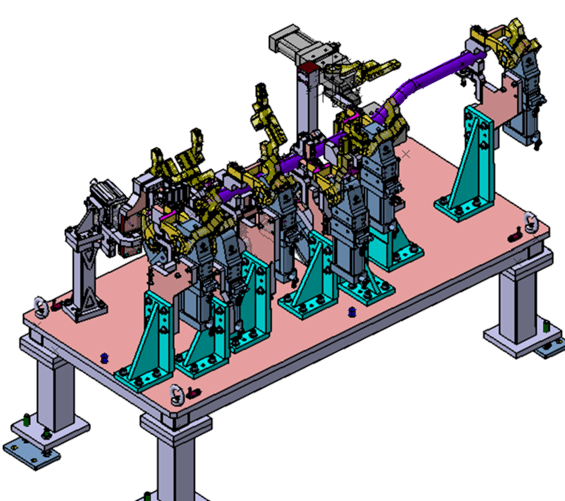

Geotools Responsibility: Design / Manufacturing / Prove-Out
Project: Q501
